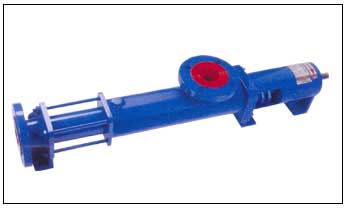

Ramo G Series



 Single screw pumps (progressive cavity)
 Pump for chemical & Industrial Application

 Pump Range


Max. Capacity

120 m3/hr

Max. Pressure

24 Bars

Viscosity

1,00,000 Cst

Castings

Grey Cast Iron , CF-8 & CF-8M are standard casting materials. Special alloys or rubber linings are optional.
Drive Shaft En-24, SS 304, SS 316 Hard Chrome Plated Under Gland for excellent wear resistance. Solid or hollow design are standard.
Rotor Hardened and Hard Chrome Plated rotoirs in En-24, Tool Steel, SS 304, SS 316,
SS 316L and other exotic materials.
Universal Joint Grease lubricated pin type fully sealed & hardened in En-245, SS 304, SS 316, SS 316L etc.
Shaft Sealing Soft packing, Cartseal and
Mechanical seal.
Stator Natural Rubber, Nitrile, Neoprene, Hyplaon, EPDM, NCR, Silicon, Viton etc.

 Application

Loading, Unloading, Transfer, Dosing, Draining, Re-circulation, Feeding to spray driers, Filter presses, Centrifuges, Digester, Evaporators etc.
 Industries

Agriculture, Breweries & Distilleries, Ceramic & Refractories, Construction, Cement Industry, Chemical & Fertilizer, Dyes, Edible / Palm Oil, Effluent Treatment, Marine & Ship Building, Sugar Industry, Paint & Varnish, Paper & Pulp Industry, Cellulose, Petrochemical, Sewage & Waste Water, Soaps & Detergent, Starch, Specialty Chemicals etc.
 Fluid Handled

Alum Liquor, Black Liquor, Additives, Ceramic Slurry, Coating Mix, Emulsions, Effluent Sludge, Molasses, Latex, Lime slurry, Paint, Poly electrolyte, Oily Water & Sludge, Spent Wash, Starch Slurry, Brine Sludge, Polymer Emulsions, Edible Oil, Gum, Soap, Shampoo, Printing Ink, Chemicals, Dye Stuff, Paint, Sewage & Waste water, Gel, Oil Paste, Pigments etc.
 Salient Features

  • Self-priming: Hence no Foot Valve / Priming required.
  • Low NPSH (R): High suction lifts up to 8.5 MWC.
  • Handles any liquid from water to abrasive slurry & froth to highly viscous media.
  • Double sealed universal joints ensure smoother power transmission & longer life.
  • Simple construction minimum wear, easy maintenance.
  • Reversible: Pump can be operated clockwise as well as in the anticlockwise direction by reversing the motor connections.
  • Torsion free metal bonded stator for higher efficiency & per stage pressure.
  • Cardan joint as optional.
  • Solid handling capacity up to 60%.
