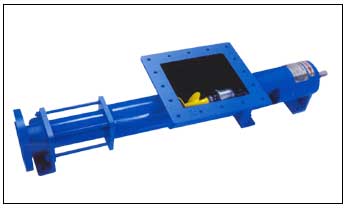

Ramo W Series



Single screw pumps (progressive cavity)
Wide Throat Feeder pump for highly viscous &
Heterogeneous Applications
 Pump Range

Max. Capacity

120 m3/hr

Max. Pressure

24 Bars

Viscosity

10,00,000 Cst or above

Standard Material

Cast Iron , SS 304, SS 316

Drive Shaft En-24, SS 304, SS 316 Hard Chrome Plated Under Gland for excellent wear resistance. Solid or hollow design are standard.
Hopper Fabricatd M.S., SS 304, SS 316, also in food grade quality.
Rotor Hardened and Hard Chrome Plated rotors in
En-24, Tool Steel, SS 304, SS 316, SS 316L and other exotic materials.
Universal Joint Grease lubricated pin type fully sealed & hardened in tool steel, SS 304, SS 316,
SS 316L etc.
Shaft Sealing Soft packing, Cartseal and Mechanical seal.
Stator Natural Rubber, Nitrile, Neoprene, EPDM, NCR, Hyplaon, Silicon, Viton etc.

 Application

Loading, Unloading, Transfer, Dosing, Draining,
Re- circulation, Feeding to spray driers, Filter presses, Centrifuges, Digester, Evaporators etc.
 Industries

Adhesive & Glue, Breweries, Bakery, Confectionery, Dairy, Cosmetics & Toiletries, Explosive, Ceramic & Refractories, Cement Industry, mining & Construction, Chemical & Fertilizer, Oil Blending, Dyestuff, Food Processing, Edible / Palm Oil, Printing & Packaging, Slaughter House & Meat Processing, Sugar Industry, paint & Varnish, Paper & pulp industry, Cellulose, Petrochemical, Sewage & waste water, Soaps & Detergent, etc.

 Fluid Handled / Applications

Aluminium Hydroxide Paste, Asbestos Slurry, Bentonite Slurry, Butter, Chayawanprash, Cake / Chocolate Mix, Clay
/ Coal slurry, Explosive Surry, Ferrite slurry, Fish Paste, Formic Acid Slurry, Fruit & Vegetable mash, Glue, Grease, Gel, Ghee, Grout Mix, Malt Mix, Magma & Massecuite, Molten Soap, Mash Grapes, Minced Meat, Oil Paste, Petroleum Jelly, Pigments, Putty, Printing Inks, Silicon Gum, Shrikand, Sludge, Tooth Paste, Yoghurt, Wax etc,

 Salient Features

  • Inlet: Wide throat suction hopper along with coupling rod cum auger arrangement, facilitate easy entry of highly viscous product to the cavity between rotor & stator, which is then pumped out with ease.
  • Bridge Breaker: Pumps are also available with bridge breaker arrangement in the Hopper to move extremely difficult liquids, which tends to stick on the walls of the hopper as well as bridge formation.
  • Viscous: Can handle highly viscous liquids, pastes and sticky materials.
  • Maintenance: Low internal velocity thereby minimizes wear & tear. Virtually no maintenance required.
  • Torsion free metal: Bonded stator for higher efficiency, increased stator life & per stage pressure.
