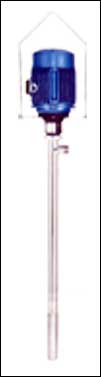

 Ramo B Series



Barrel Single screw pumps (progressive cavity) for Viscous liquids
 Pump Range

Max. Capacity

60 LPM

Max. Pressure

12 Bars

Viscosity

1,00,000 Cst & above

Max. RPM

900 RPM.

 Standard Material

Immersion Tube

MS, SS 304, SS 316 (Also available in Food Grade)

Rotor

SS 304, SS 316 (Also available in Food Grade)

Stator

Nitrile, Neoprene, EPDM, NCR, Hyplaon, Viton etc.

Stator Sleeve

Ms, SS 304, SS 316
Shaft Sealing Soft Packing, Mechanical Seal
Flexible Shaft Alloy Steel, SS 304, SS 316
Immersion Depth Max. 1100 MM
Immersion Tube Size Dia 32 mm, 42 mm & 54 mm

 Application

Loading, Unloading, Decanting of Drums, Carboyus, Cans, Jerry Cans, Vessels & Sumps etc.
 Fluid Handled

Chemicals, Varnishes, Polymer Emulsions, Latex, Silicone, Cleaning Agents, Lubricating Oils & Greases, Cutting Oils, Coolants, Tomato Puree, Liquid Glucose, Honey, Jams, Fruit Juices, Yoghurt, Chocolate Mass, Detergents, Liquid Soaps, Ointments, Shampoo, Hand Cream etc.
 Salient Features

  • Portable Design: Light weight easy to carry & handle.
  • Drive Options: Electrically & Pneumatically Driven (Air).
  • Flow Meter: Incorporation of Flow Meter can be used for Blending / Sampling of the Fluid.
  • Pump Weight: Max. 8kgs.
  • Gentle handling
  • Easy to dismantle & Clean
